Dalsan COREX Turkey (Ankara, Gebze, Turgutlu Plants) SKU: 140.RC.125.2500 TS EN 520 + A1 Tip DFH2IR

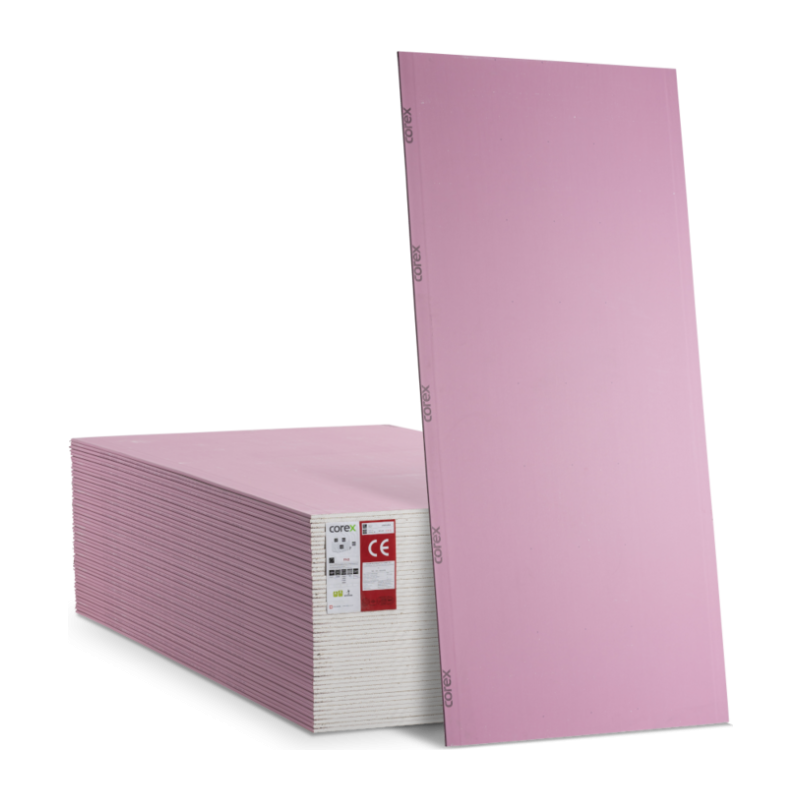

Bordo COREX Multipurpose High-Performance Board (DFH2IR)

All-in-one premium board combining fire resistance, water repellence, surface hardness, and core density. The ultimate single-specification board.

Bordo COREX Multipurpose High-Performance Board (DFH2IR)
Zoom
REQUEST EXPORT QUOTE Request Sample Box (Express) Technical Specifications
Standard / Norm
TS EN 520 + A1 Type DFH2IR
Thicknesses / Gauges
12.5 mm, 15.0 mm
Reaction to Fire
A2-s1, d0 (Impact, Moisture, Sound & Fire Resistant)
Export Packing
Strapped & Hooded
40ft HC Container Load
24 - 25 Metric Tons
Lead Time (Ex-Works)
7 - 10 Days
Direct Factory Supply: All dispatches are strictly full truckload (FTL), container (FCL), and major project based. No retail sales.
B2B Wholesale Only / No Retail
HS Tariff Schedule Code
6809.11.00.00.00
Loading Seaports (POL)
Mersin (MIP) / Evyap / Izmir
Supported Incoterms
FOB / CIF / CFR / DAP / EXW
Export Documents
EUR.1 / A.TR / COO / CE DoP
Section 01 • Product Overview
Bordo COREX Multipurpose High-Performance Board (DFH2IR)
Zoom
Authentic Factory Product Dalsan COREX

Technical Overview & Manufacturing Quality

All-in-one premium board combining fire resistance, water repellence, surface hardness, and core density. The ultimate single-specification board.

Manufactured in modern automated facilities in Turkey under stringent European standards. Every production batch undergoes rigorous laboratory testing for flexural breaking load, dimensional tolerances, core cohesion under fire, and surface water absorption. (TS EN 520 + A1 Tip DFH2IR).

Manufacturing Standards
CE Marking & Declaration of Performance (DoP)
ISO 9001:2015 Quality Management Certified
Full Compliance with Harmonized EN Standards
Export Ready ISPM 15 Treated Pallet Packaging
Section 02 • Engineering Specifications

BORDO & PREMIUM COREX Multipurpose High-Performance Board Specifications

Official factory product codes, cross-section dimensions, unit weights, and production dispatch plants.

TS EN 520 + A1 Type DFH1IR
Loading Facilities & Seaport Terminals:
Ankara (Bala) Gebze (Ist) Turgutlu (Izm)
BORDO COREX 12,5 mm (2.5m) 140.RC.125.2500
10,50 kg / m²
Width x Length 1200 x 2500 mm
Standard Lengths 2,5 m
Pallet Packaging 50 pcs / pallet
Loading Facilities: Ankara Gebze Turgutlu
BORDO COREX 15,0 mm (2.5m) 140.RC.150.2500
13,50 kg / m²
Width x Length 1200 x 2500 mm
Standard Lengths 2,5 m
Pallet Packaging 40 pcs / pallet
Loading Facilities: Ankara Gebze
PREMIUM COREX 12,5 mm (2.5m) 140.PC.125.2500
12,85 kg / m²
Width x Length 1200 x 2500 mm
Standard Lengths 2,5 m
Pallet Packaging 50 pcs / pallet
Loading Facilities: Ankara Gebze Turgutlu
PREMIUM COREX 15,0 mm (2.5m) 140.PC.150.2500
15,50 kg / m²
Width x Length 1200 x 2500 mm
Standard Lengths 2,5 m
Pallet Packaging 40 pcs / pallet
Loading Facilities: Ankara Gebze

Factory Dispatch Facilities & Export Seaport Connections

All orders are dispatched from the geographically most advantageous manufacturing facility based on delivery terms (FOB, CFR, CIF, DAP) and destination country:

Golbasi - Bala Plant (Ankara)
Active Dispatch
Port of Mersin (MIP)
Middle East, Red Sea, North Africa, Arabian Gulf
Gebze Plant (Kocaeli)
Active Dispatch
Ports of Istanbul (Ambarli & Diliskelesi)
Black Sea, West Mediterranean, European Road Freight
Turgutlu Plant (Manisa)
Active Dispatch
Ports of Izmir (Alsancak & Nemport)
Aegean Sea, Greece, Italy, Adriatic & Balkans
Elmadag Plant (Ankara)
Port of Mersin (MIP) & Road Freight
Central Anatolia, Caucasus & Middle East Corridor
Cerkezkoy Plant (Tekirdag)
Port of Asyaport & Europe Border Gate
Balkans, Central Europe & Northern Sea Routes
Container pallet nesting configurations, ocean freight rates and transit times: Export Logistics & Container Guide →
Direct Export Sales Desk

Request Proforma Quote (FOB / CIF)

Get factory-direct pricing and container loading plans within 2 hours.

Direct manufacturer & mill supply (no intermediate markups)
CE Marking, Declaration of Performance (DoP) & ISO 9001
Flexible payment: T/T and 100% Confirmed Irrevocable L/C accepted
SEND INQUIRY VIA WHATSAPP
Need Help Calculating Quantities?

Use our engineering calculator to estimate exact board count, studs, tracks, and screws.

Launch BOQ Estimator
Section 03 • Architectural Applications

Recommended Project Uses & Systems

High-traffic public corridors subject to heavy wear and impact
Humid and fire-sensitive areas (commercial kitchens, utility rooms)
Schools, universities, and student accommodation partitions
Hospitals, clinics, and cleanroom partitioning systems
Section 04 • Export Packaging & Logistics

Pallet Stacking & 40ft HC Container Payload

40ft HC Container: 16 - 17 Pallets (approx. 24-25 Tons).

Standard Pallet Dimensions & Packaging Values:
12.5mm x 1200 x 2500mm
50 Sheets / Pallet = 150 m² (1,575 kg)
15mm x 1200 x 2500mm
40 Sheets / Pallet = 120 m² (1,620 kg)
Export Moisture Barrier Guarantee: All sea freight pallets are placed on ISPM 15 treated wooden blocks, cross-strapped with polyester tension bands, protected with corrugated corner guards, and encapsulated in heat-shrunk polyethylene weather hoods to safeguard against maritime humidity.
