Certified Export Category • Direct From Turkey

Dalsan PUNTO Galvanized Drywall Studs, Tracks & Ceiling Profiles Turkey

Q: What steel grade and zinc coating do you use for drywall metal profiles?

SerProfil manufactures all studs, tracks, and ceiling channels from prime hot-dip galvanized structural steel coil (DX51D+Z) complying with EN 10346 and EN 14195. Standard zinc coating is Z100 to Z140 g/m² for interior dry framing, with heavy-duty Z275 g/m² available for exterior framing or humid export markets.

Q: Can you produce custom profile lengths to match our project ceiling heights?

Yes. In addition to standard lengths (2.60m, 2.70m, 3.00m, 4.00m), our computer-controlled roll-forming lines can cut DC and DU studs to exact project specifications up to 6.00 meters. Custom lengths eliminate on-site cutting labor and site steel wastage.

Q: What are the exact dimensional differences between CW/UW and DC/DU profiles?

They are equivalent European and regional drywall framing terms. DC stands for Wall Stud C (CW profile in DIN 18182), and DU stands for Wall Track U (UW profile). Our profiles feature knurled textured flanges to prevent drywall screws from slipping during rapid installation.

Q: How many meters of drywall profiles fit into a 40ft HC container?

A full container load dedicated entirely to metal profiles accommodates between 20,000 and 24,000 linear meters (approx. 24 to 26 metric tons). In mixed shipments with gypsum boards, profiles can be loaded in quantities ranging from 3,000 to 12,000 linear meters.

Q: Are service punch-outs (utility holes) included in vertical studs?

Yes, all vertical DC studs feature factory-punched H-cut service holes spaced at regular vertical intervals, allowing electrical conduits, plumbing pipes, and data cabling to pass through without weakening the stud flanges.

Manufactured under Dalsan PUNTO and SerProfil specifications using certified hot-dip galvanized prime steel coils (DX51D+Z). Our precision roll-forming lines produce high-rigidity drywall studs, runners, and acoustic ceiling channels meeting European standard EN 14195 with knurled flanges for easy screw penetration.

TS EN 14195 DIN 18182-1 CE Certified Z100 - Z275 Galvanized FTL / FCL & Project Supply Only (No Retail)

Available Specifications & Products

Select a product to inspect dimensions, pallet packaging, and request export quotation.

FOB / CIF Quoted

Direct Factory Supply: All dispatches are strictly full truckload (FTL), container (FCL), and major project based. No retail sales.

B2B Wholesale Only / No Retail

Dalsan PUNTO TS EN 14195 / DIN 18182-1

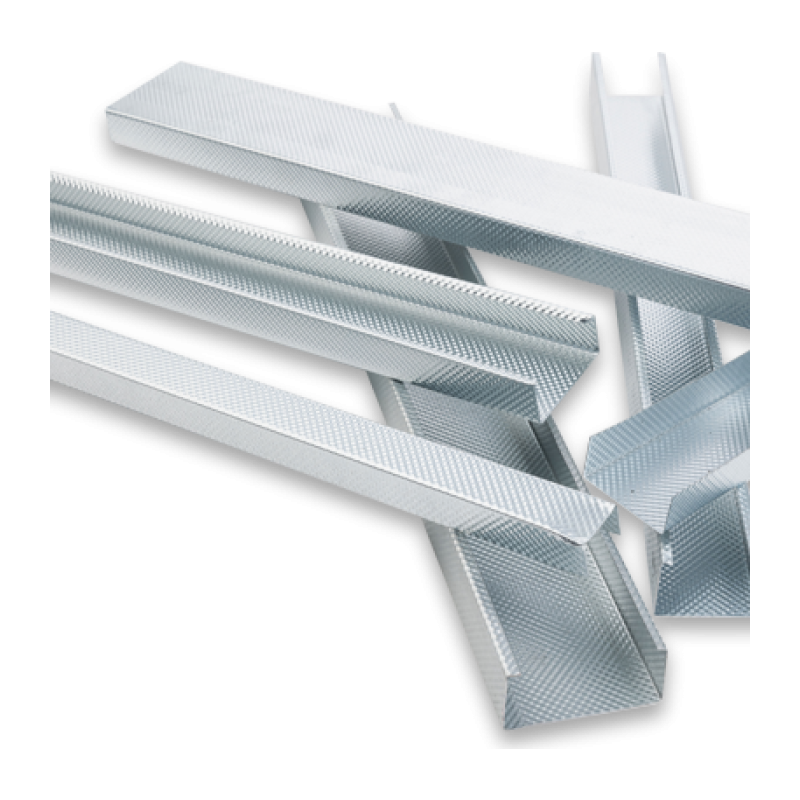

Dalsan PUNTO Galvanized Drywall Metal Profiles Export

Precision cold-roll formed drywall framing studs, tracks, and ceiling runners manufactured from prime hot-dip galvanized steel coil (DX51D+Z).

Thickness: 0.40 mm, 0.45 mm, 0.50 mm (Standard), 0.60 mm (Pro), 0.90 mm (Heavy Duty)

Fire Class: Euroclass A1 (Non-Combustible Steel)

Technical Details Quote

Dalsan PUNTO TS EN 14195

Dalsan PUNTO DC Wall Stud Profiles (CW 50 / 75 / 100)

Vertical C-stud framing profiles engineered with knurled flanges for easy drywall screw driving and punch-outs for electrical cables and plumbing pipes.

Thickness: 0.40 mm, 0.45 mm, 0.50 mm (Standard), 0.60 mm

Fire Class: Euroclass A1

Technical Details Quote

Dalsan PUNTO TS EN 14195

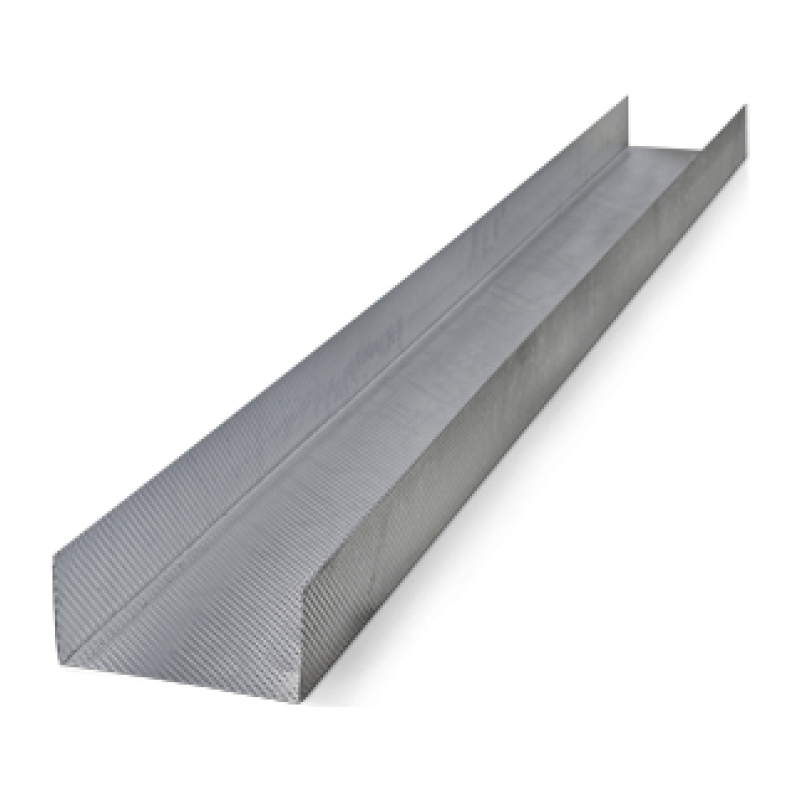

Dalsan PUNTO DU Wall Track Profiles (UW 50 / 75 / 100)

Horizontal U-channel runners fastened to floors and soffits to receive and secure vertical DC studs in partition wall assemblies.

Thickness: 0.40 mm, 0.45 mm, 0.50 mm (Standard), 0.60 mm

Fire Class: Euroclass A1

Technical Details Quote

Dalsan PUNTO TS EN 14195

Dalsan PUNTO TC & TU Suspended Ceiling Profiles (CD 60 / UD 28)

Cold-formed galvanized steel ceiling channels: TC 60 acts as primary and secondary suspension runners; TU 28 provides wall perimeter support.

Thickness: 0.40 mm, 0.45 mm, 0.50 mm (Standard), 0.60 mm

Fire Class: Euroclass A1

Technical Details Quote

Dalsan PUNTO TS EN 14353

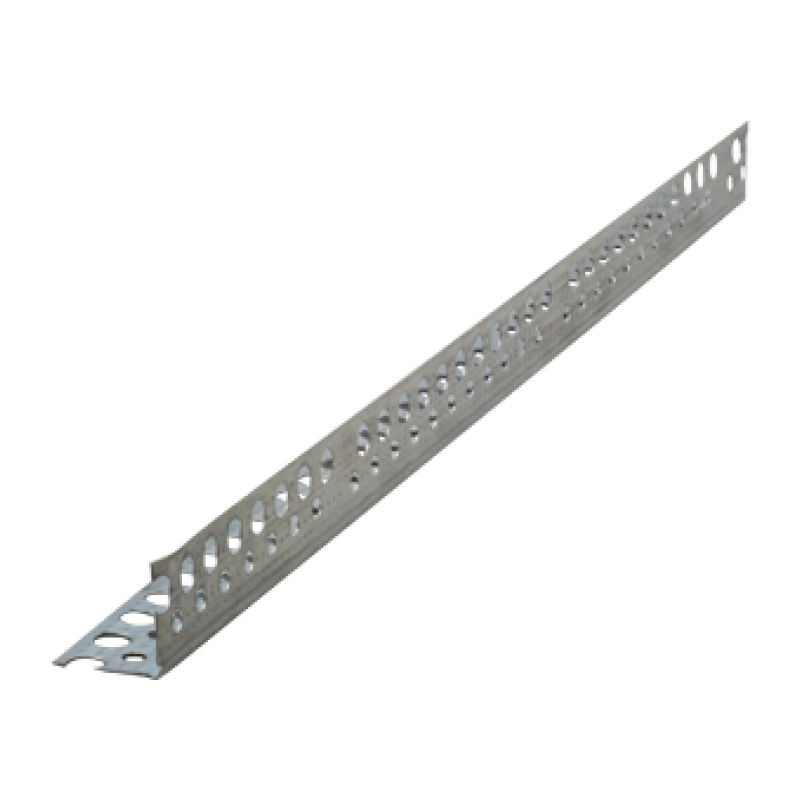

Dalsan Corner Beads & Drywall Edge Trims (Perforated & Mesh)

Impact-resistant corner protectors engineered for 90-degree external corners, door reveals, and plaster edges. Available in galvanized steel, aluminum, and mesh-reinforced PVC.

Thickness: 0.35 mm, 0.40 mm, 0.50 mm

Fire Class: Euroclass A1

Technical Details Quote

Dalsan PUNTO TS EN 14195

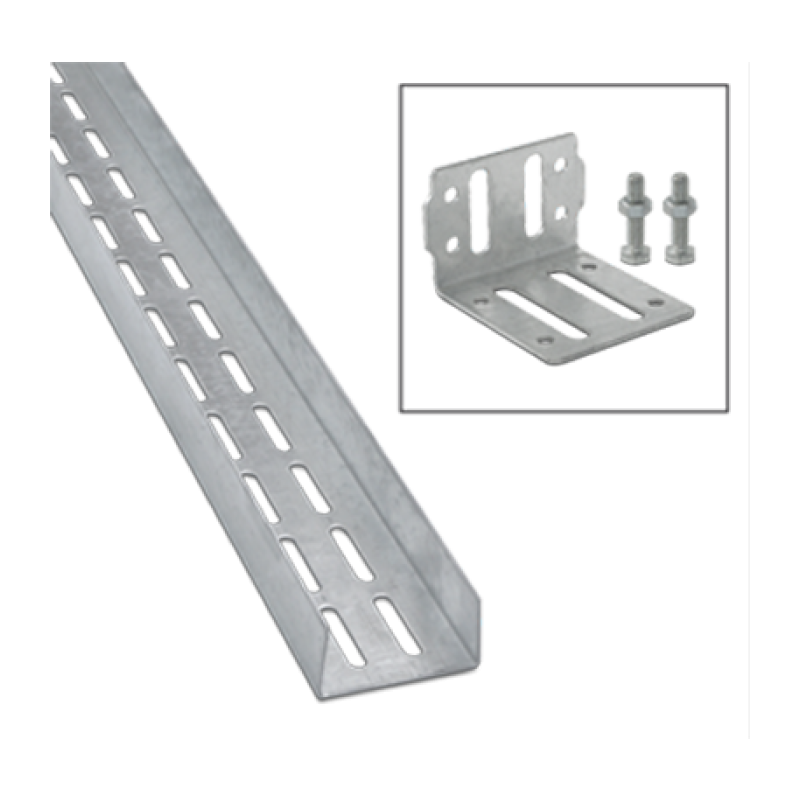

Dalsan PUNTO KDP Heavy Door Frame Support Profiles (2.0mm Galvanized)

2.0 mm heavy-gauge galvanized steel door framing structural studs. Prevents wall vibration and frame sagging around heavy timber and metal door assemblies.

Thickness: 2.00 mm Heavy Steel

Fire Class: Euroclass A1 (2.0 mm Heavy Galvanizeded Steel)

Technical Details Quote

Dalsan PUNTO TS EN 14195

Dalsan PUNTO KDP Door Support Bracket & Heavy Profile Framing Set

Structural connection set designed to anchor 2.0 mm heavy-gauge KDP door studs to concrete floor slabs and structural soffits with heavy M8 bolts and steel anchors.

Thickness: 2.00 mm Heavy Galvanizeded Steel

Fire Class: Euroclass A1

Technical Details Quote

Dalsan BoardeX / PUNTO TS EN 14195 (Z275 Galvaniz)

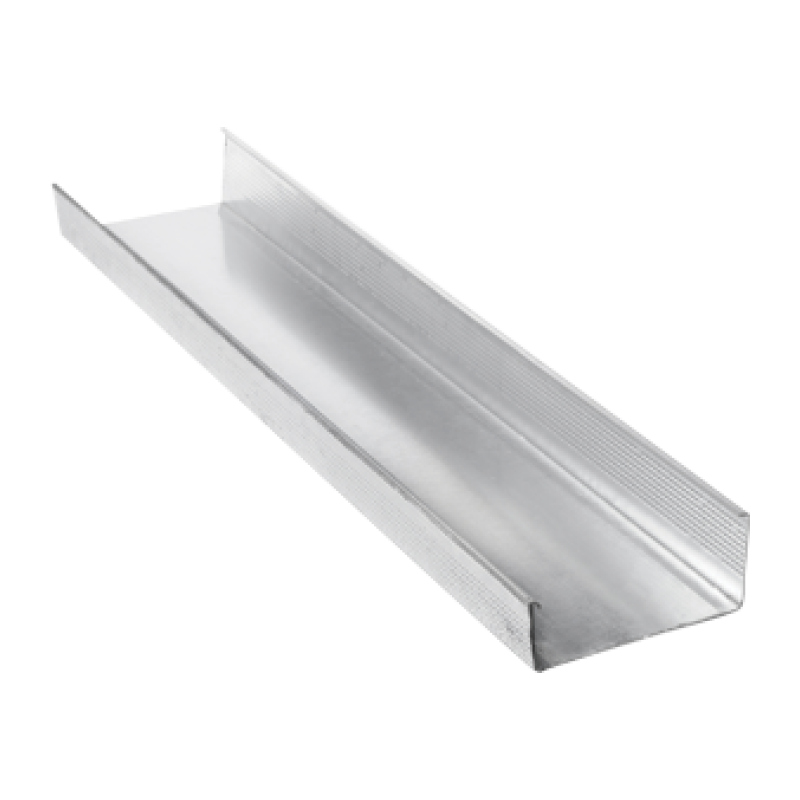

Dalsan BoardeX Heavy-Gauge Exterior Framing Profiles (DC, DCC, CT, Omega - Z275)

Heavy-gauge galvanized steel exterior framing profiles coated with 275 g/m² zinc (Z275) for maximum atmospheric corrosion resistance in facade assemblies.

Thickness: 0.60 mm, 0.90 mm (Heavy-Duty Facade)

Fire Class: Euroclass A1 (275 g/m² Heavy Exterior Galvanizeded Steel)

Technical Details Quote

Buyer Inquiries & Support

Frequently Asked Questions

Export procedures, technical standards, minimum orders, and shipping lead times.

What steel grade and zinc coating do you use for drywall metal profiles?

Can you produce custom profile lengths to match our project ceiling heights?

What are the exact dimensional differences between CW/UW and DC/DU profiles?

How many meters of drywall profiles fit into a 40ft HC container?

Are service punch-outs (utility holes) included in vertical studs?

Direct Turkish Factory Export

Ready to Order or Need a Proforma Invoice?

Connect directly with our export sales engineering team on WhatsApp for instant container optimization, FOB/CIF pricing, and shipping schedules.

CHAT ON WHATSAPP NOW Submit Material List (RFQ)

FOB / CIF / DAP Quoted in EUR or USD Full Container (40ft HC) or Mega Truck Fast Zero-Commitment Consultation
